Poyong

Immersive world space dialogue system

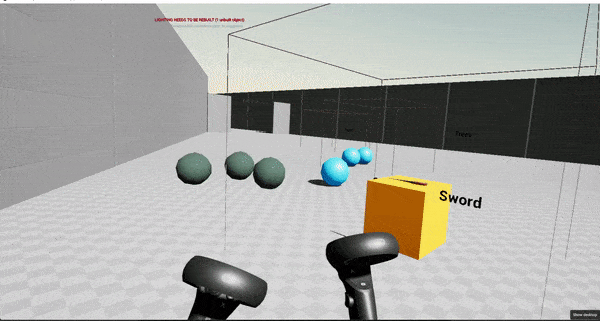

One of the core themes we wanted to explore in Poyong was allowing players to react to narrative delivery in game. With our love for RPGs, we wanted to attempt a dialogue system similar to traditional dialogue systems in CRPGs such as Baldur’s Gate or Divinity. These systems had values (known as disposition values) tied to dialogue choices that affected how the game reacts to players. However, as VR was unlike traditional 2D/3D mediums due to its immersive nature, we needed to find a way to display dialogue that fits seamlessly into the world. We found that a dialogue system that existed in world-space would allow the players to understand the breadth of dialogue choices they had while also increasing readability of subtitles in VR.

I followed Reids’ tutorial on YouTube to create the backend of our dialogue system. The dialogue tree was built on Unreal Engine’s behavior tree class, with tasks for Poyong speaking and player replies. The subtitles are displayed on a world-space actor containing a widget component that spawns a certain distance from the player whenever they activate a dialogue interaction (by stepping into a trigger area). The player’s corresponding replies to the dialogue interaction was adapted to OpenXR’s menu actor that allows players to view choices on their left or right VR controller. Players can then select any of the dialogue options presented to them by pointing at it with the opposing controller or activating a cursor with the same controller.

This promoted VR interactivity and immersion for the player to feel like their dialogue selections are connected to themselves.

Scripted VR cutscenes

In addition to a dialogue system, we also wanted to help the player feel as if their actions have an impact on the world. To achieve this, we needed to link player actions to a type of mechanic that indicated major game state changes and story progression within our narrative-driven game. To achieve this, we decided to explore how cutscenes would play out in VR.

However, we couldn’t stick to how cutscenes were conventionally done (by cutting to a new scene with multiple cameras), it had to happen in real-time. Conventional cutscenes were also risky in VR as it may disorient players if their viewports were constantly switching between cameras, causing physical discomfort. Working with our narrative designer, we designated specific areas in the level that triggered these real-time events. I also utilized the environment to our advantage by blocking out distracting visual elements (e.g. a torch) and spatial sound to direct the players attention towards these events.

Accounting for unique player behavior

In VR, players have the freedom to interact with a new world in any manner they wish to. This meant that they could freely move or interact with props we provided them with. Unlike traditional 2D/3D mediums that typically wouldn’t allow these behaviors, there would be an almost infinite array of unique player actions that we needed to account for. However, at the same time, we wanted to reward players for thinking beyond the capabilities of a new medium by letting the game react to these actions.

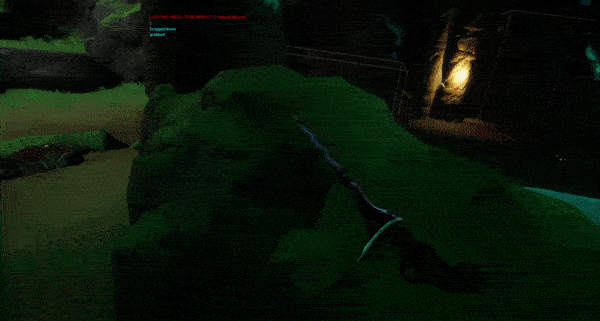

We needed to account for unique player behavior throughout the game. I worked with our narrative designer to brainstorm various actions that players would take in game. An example includes Poyong reacting angrily to the player if they dropped the sword multiple times (which was a common occurrence in VR, players would toss objects consecutively to explore the physics).

Linear level design to deliver a linear experience

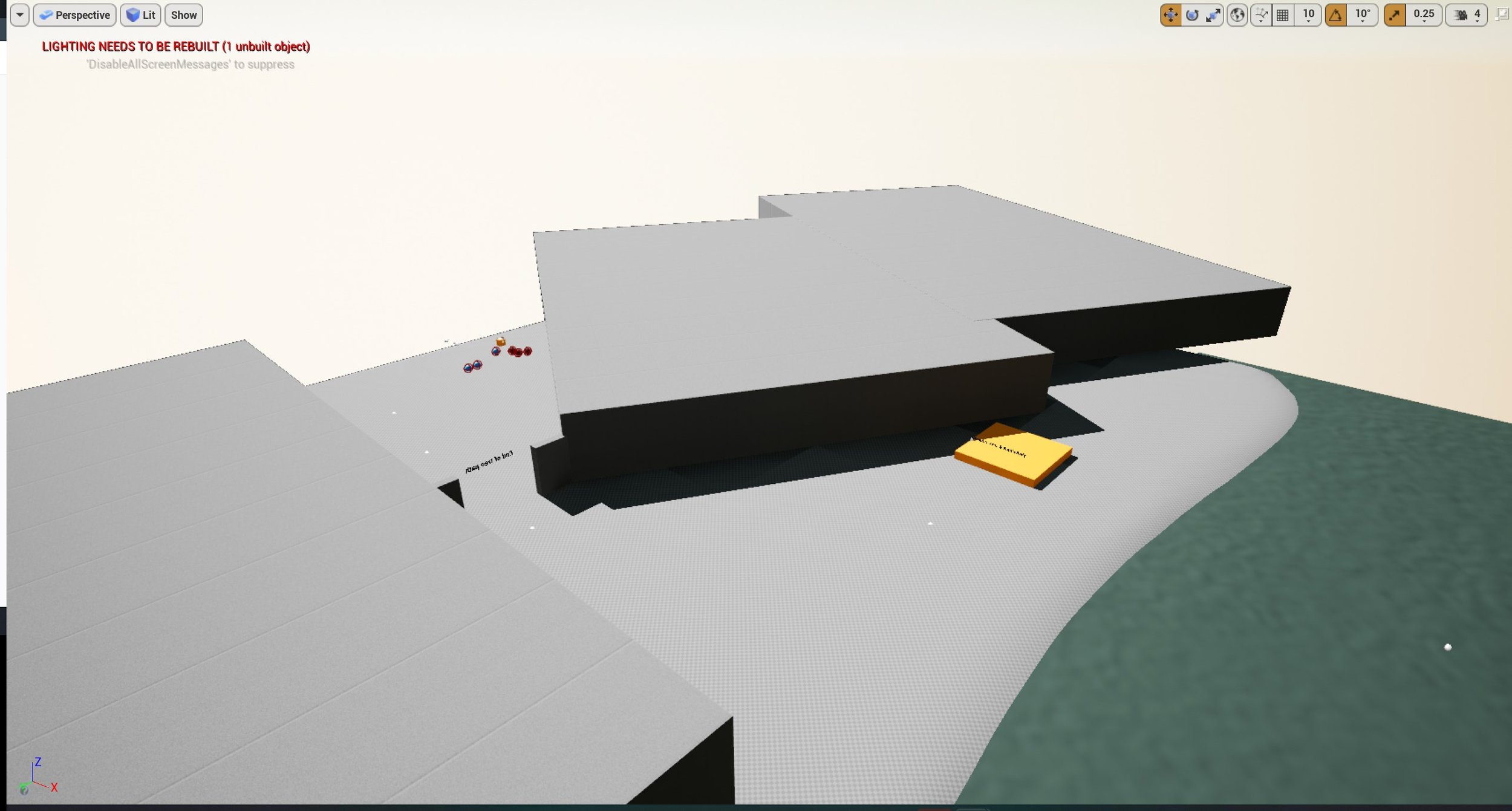

Poyong’s level was designed to be linear without branching paths to deliver a linear narrative experience.

I worked with our narrative designer to build the flow of the story and understand how he wanted it to be presented in game. I followed the story beats that he designed and wrote to create a basic level design with denoted points for significant events (e.g. Poyong summoning). I wanted the player to use the opening area as an onboarding section to get used to the smooth locomotion movement system in VR.

Backend disposition system tracking

Across the dialogue system and direct or indirect actions that players can take, any object or system in the game can have an impact on the player’s total disposition count. This disposition count can trigger instanced events in the game, such as a sound effect that plays when the player hits a disposition count of 5, and determine which ending the player will get.

This meant that I needed to create a backend system that would allow our team to assign a disposition value to any actor or system in the game. I needed to find a way to:

Modularly assign disposition values to any action or dialogue choice

Track total concurrent player disposition count

Check if player disposition count hit certain thresholds, triggering a response

To achieve this, I used a combination of behavior trees, actors, and game instances to implement this system.

In the behavior tree, integer values are tied to dialogue options, passing them on to dialogue area manager actors. These managers then track these values for instanced low-level responses to value thresholds achieved by the player.

Simultaneously, the total disposition count is passed to the Game Instance class to determine the overall disposition count, dictating which ending the player gets.

Ending story branching system

As our game revolved around reactivity towards players’ actions, we also needed to create an ending branching system that was tied to our players’ disposition counter. This would serve as a culmination of the journey our player took to get here. Building this system meant that depending on the player’s final disposition counter, players would get a different voice line and subtitles in a separate ending scene that indicated whether they:

Allowed Poyong to possess them

Successfully denied Poyong’s possession

Failed to deny Poyong’s possession

To achieve this, the ending branching system has to:

Determine the player’s final disposition counter

Communicate the player’s ending branch to the game instance

Allow the game instance to pull relevant assets related to the corresponding ending branch

Pass assets to the final ending scene

I used the Game Instance class and inRange function to determine the ending branch of the player depending on their disposition value and stored it in an Enum variable. This Enum variable then passes on a voice line and ending text which corresponded to the ending branch into an actor placed in the ending scene to display them.

Editor tools to allow easy design changes

While working with our narrative designer, we realized that we needed to find a way to easily transfer dialogue texts from Milanote, the tool he used to visualize dialogue branches, into Unreal Engine. This would allow us to cut down on the back and forth between designers and developers to modify simple parameters (e.g. dialogue texts). Hence, I needed to create a pipeline and documentation that facilitated this process smoothly. This pipeline should aim to:

Easily create or modify dialogue in our game without affecting other systems in place

Onboard our narrative designer to Unreal Engine steadily through editor tools and simple visualizations

Simplify the process of transferring content from one platform to the other as our narrative designer hadn’t worked in Unreal prior

As our dialogue system was created on Unreal’s behavior trees, we created input fields in editor corresponding with dialogue branches on Milanote. These fields included the text to display as subtitles and a voice line that determines the length of which the text will be displayed for. The Node Name field references standardized dialogue codes on Milanote that allowed us to easily identify and match different dialogue branches across both platforms.
